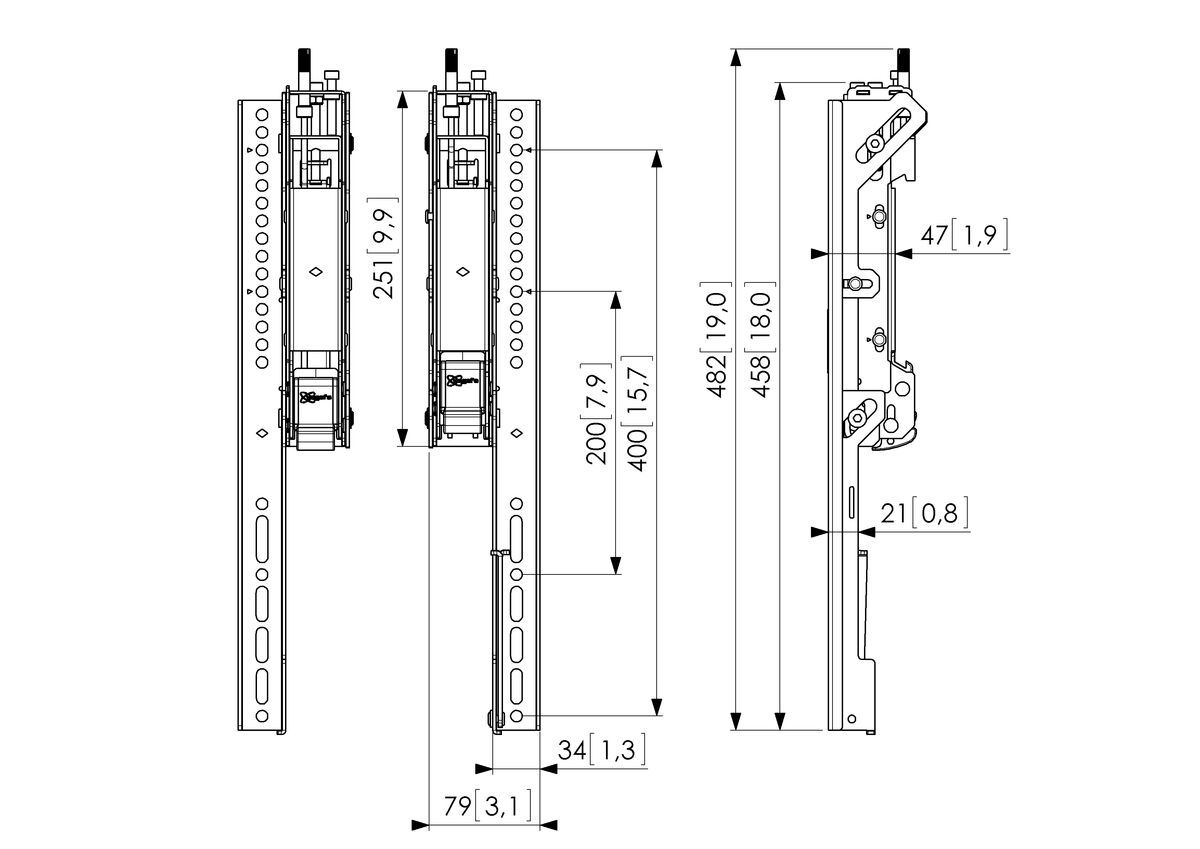

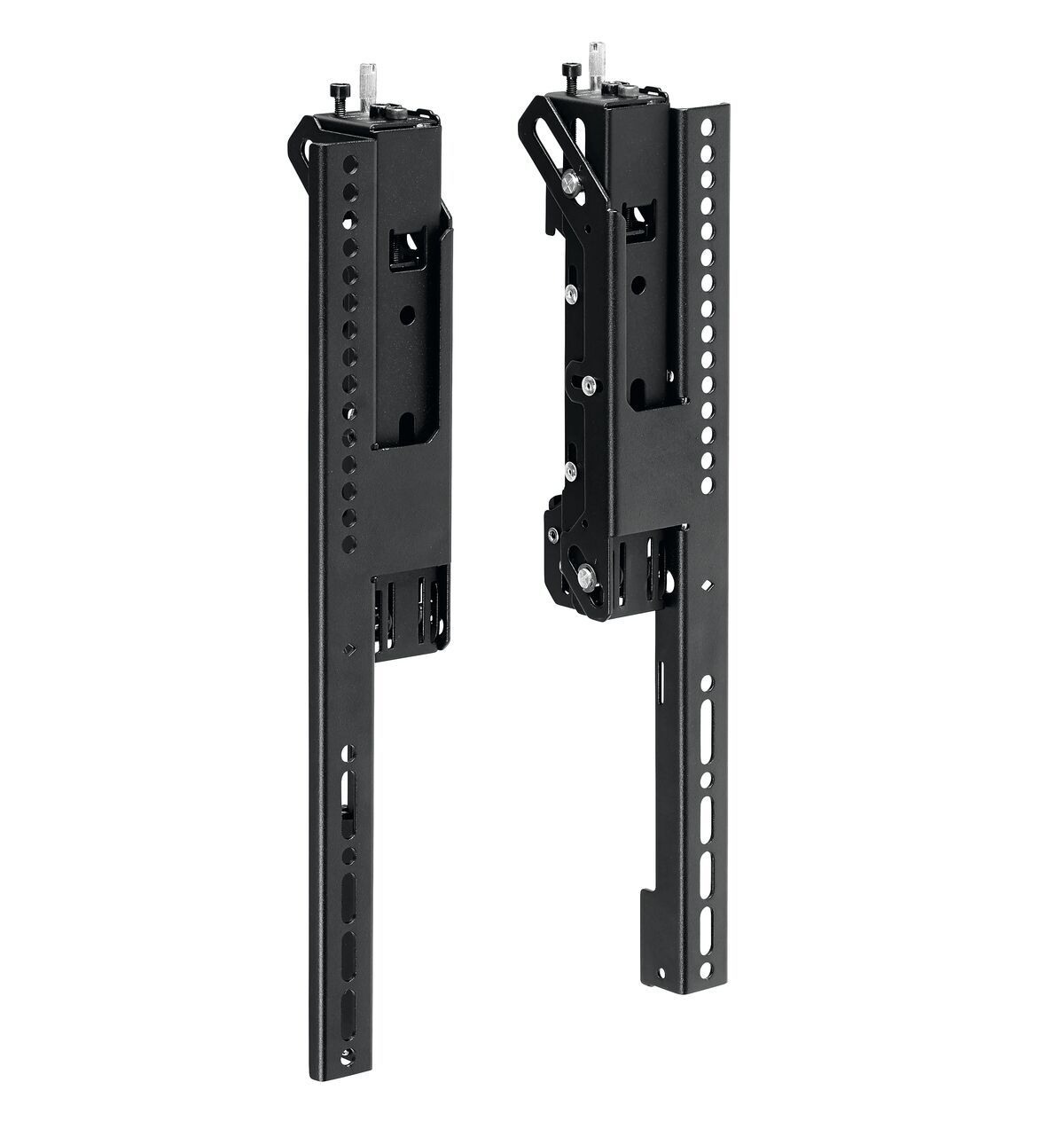

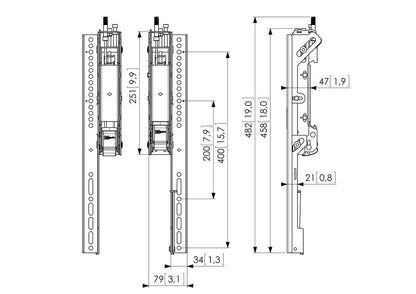

Display interface strips 3D adjustable Max. fitment (mm) 445 / 400 mm

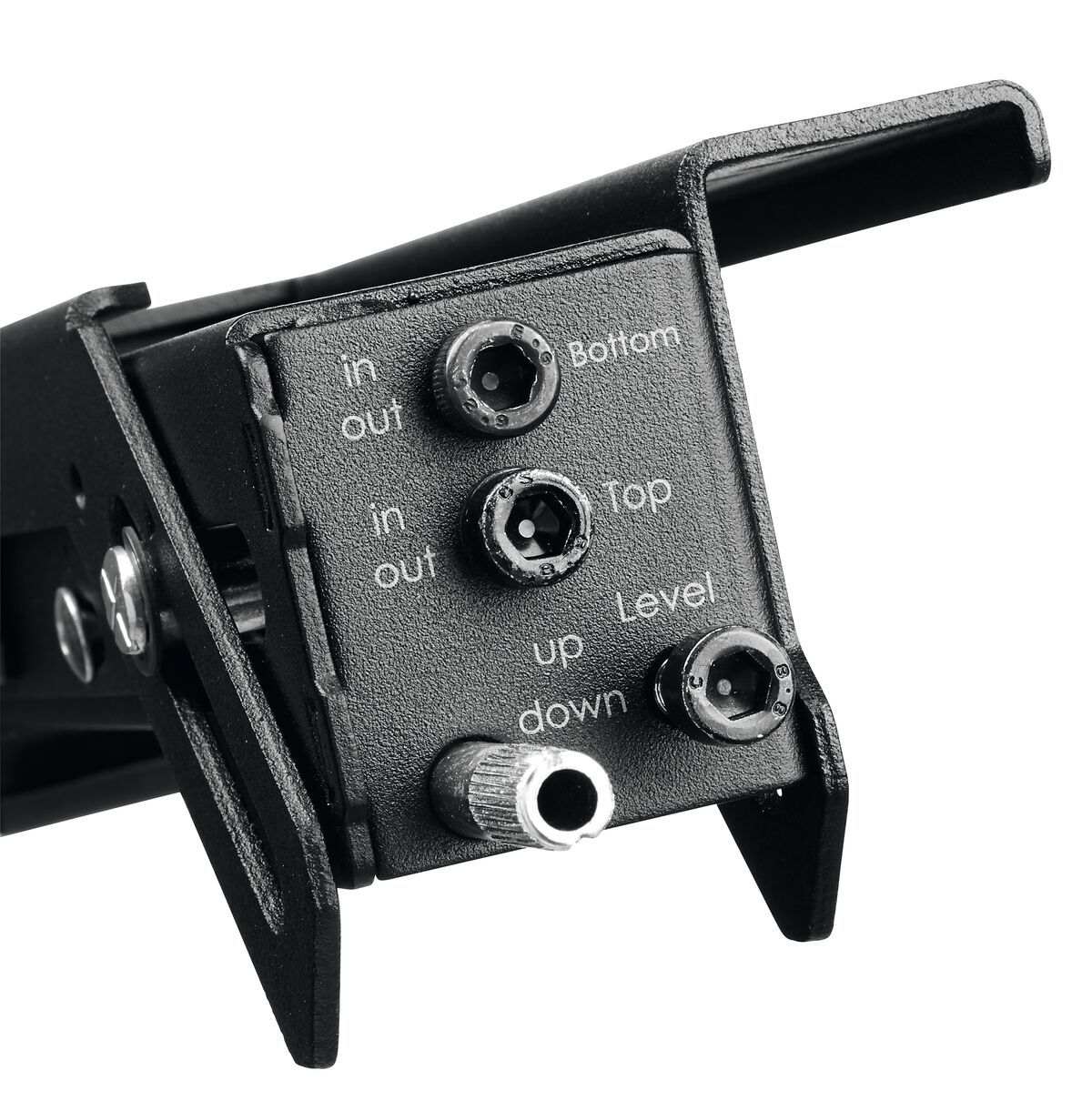

The PFS 3504 is a set of 3D-adjustable display interface strips for a clean, seamless installation of video walls and in-line digital menu boards.The modular Connect-it video wall mounting solution consists of one or more interface bars (PFB 34xx) and a set of PFS 35xx multi-directional adjustable interface strips per display. Depth, tilt angle and horizontal alignment can be adjusted quickly and precisely. The PFS 3504 is suitable for displays with a maximum VESA height of 400 mm.

The PFS 3504 features a built-in service position, allowing you to connect cables easily even after the displays have been installed. Each individual display can also be removed for maintainance or replacement, even when it is located in the middle of the video wall. Additional features include the lock for lateral shift to avoid horizontal movement. With the optional padlock (PFA 9109) you prevent unauthorized removal.

Vogel’s offers interface bars in various lengths and 3D adjustable display interface strips in two sizes, for VESA 400 mm and VESA 800 mm. Thanks to the flexible, modular Connect-it system, you can easily create a video wall solution for almost any setup, tailored to your installation requirements.
