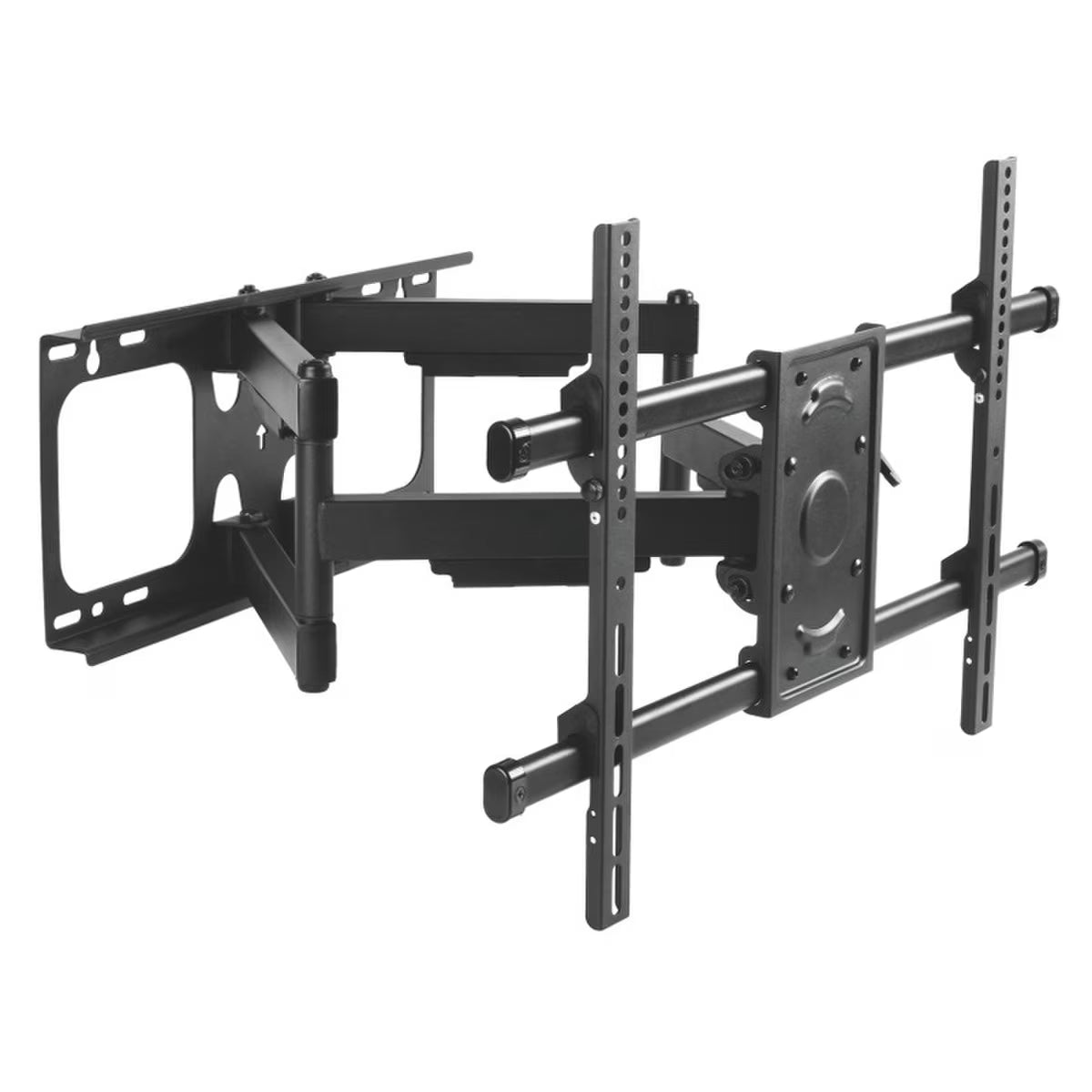

50" - 100" X-Large Heavy Duty Articulating TV Mount

50" - 100" X-Large Heavy Duty Articulating TV Mount

VWM800ARTXL

$155.65 AUD including GST
$141.50 AUD excluding GST
Sale Sold out

In stock
Description

Heavy Duty Full Motion TV Wall Mount

This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. A quick lock and release system keeps the TV in place with no tools required. The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.

Specification

Product: Category Full-motion TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet,
Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079" cold-rolled sheet,
Wall Plate THK=0.12" pickling sheet)
Pipe Size: 40 x 20 x 1.5mm
(1.6 x 0.79 x 0.059")
Surface Finish: Powder Coating
Colour: Fine Texture Black
Dimensions: 635x885x630mm
(25"x34.8"x24.8")
Fit Screen Size: 50"—100"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200 x 200,
300 x 200,
400 x 200,
300 x 300,
400 x 300,
400 x 400,
600 x 400,
800 x 400,
800 x 600
Max. Mounting Hole: 800x600
Weight Capacity: 75kg (165lbs)
Strength tested: 2 times approved
Profile: 69~635mm (2.7"~25")
Tilt Range: +5°~-15°
Swivel Range: +60°~-60°
Screen Level: +3°~-3°
Screen Freely Tilting: No
Installation: Solid Wall, Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: Yes
Anti-theft: No
Bubble Level: Hook-on Bubble Level (Included in Components Package)
Accessory Kit Package: Recyclable paper bag
Certification: CA 65

For the manual, download the brochure
