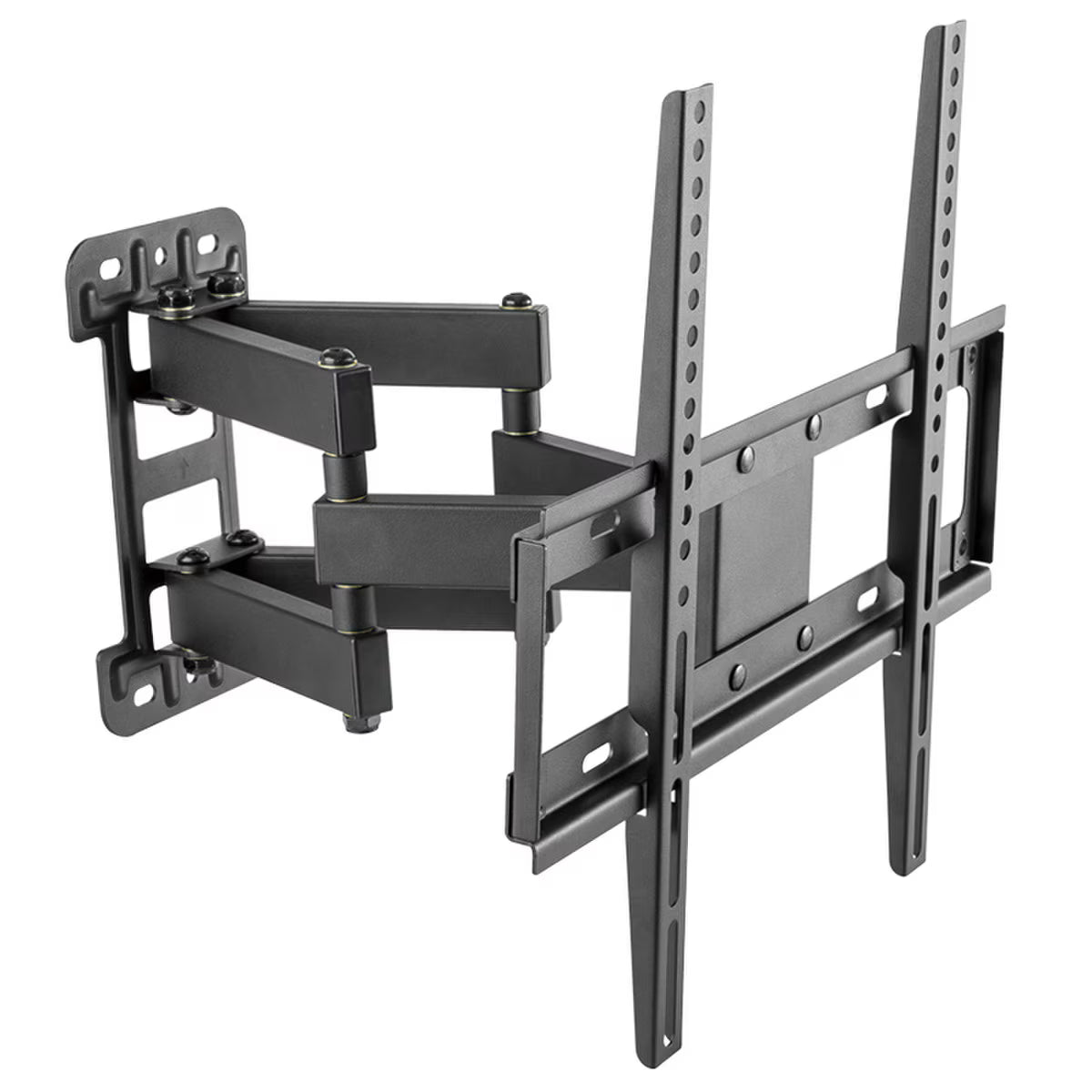

32" - 75" X-Large Articulation TV Mount

32" - 75" X-Large Articulation TV Mount

VWM400ARTXL

$88.00 AUD including GST
$80.00 AUD excluding GST
Sale Sold out

In stock
Description

Solid Steel Full Motion TV Mount

With the Super Solid Large mount you can adjust your TV for any viewing position, no more neck or eye strains while watching your favourite shows! Heavy duty unit fits most 32"–75" TVs up to 45kg/99lbs, with max VESA mounting holes of 400×400mm.

Specification

Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,
VESA Panel THK=2mm cold-rolled sheet,
Wall Plate THK=2.5mm pickling sheet
(Bracket Arm THK=0.059" cold-rolled sheet,
VESA Panel THK=0.079" cold-rolled sheet,
Wall Plate THK=0.098" pickling sheet)
Pipe Size: 40 x 20 x 1.5mm (1.6 x 0.79 x 0.059"
Surface Finish: Powder Coating
Colour: Fine Texture Black
Dimensions: 435 x 420 x 388 mm
(17.1 x 16.5 x 15.3")
Fit Screen Size: 32"—75"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200 x 200,
300 x 200,
400 x 200,
300 x 300,
400 x 300,
400 x 400
Max. Mounting Hole: 400x400
Weight Capacity: 45 kg(99lbs)
Strength tested: 3 times approved
Profile: 86-388mm (3.4-15.3")
Tilt Range: +2°~-18°
Swivel Range: +60°~-60°
Screen Level: +3°~-3°
Screen Freely Tilting: No
Installation: Solid Wall, Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: Yes
Anti-theft: No
Bubble Level: Hook-on Bubble Level (Included in Components Package)
Accessory Kit Package: Recyclable paper bag

For the manual, download the brochure
